Create a simple system

The first example creates a very simple system: 1 input, 1 output and 3 rules.

The input is the wine degree, the output is the price paid to the winegrower. The rules make the price change in function of the degree.

• First choose the New option in the FIS menu.
• The default name New FIS appears in the Name field. It is an editable text field. Rename it as coop.
• The conjunction is the operator used for combining MFs in the rule premise. The default operator is the product.

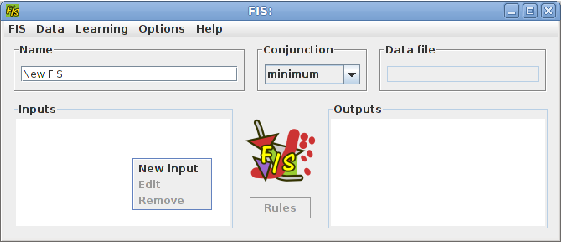

Figure 1: Main window in FisPro
